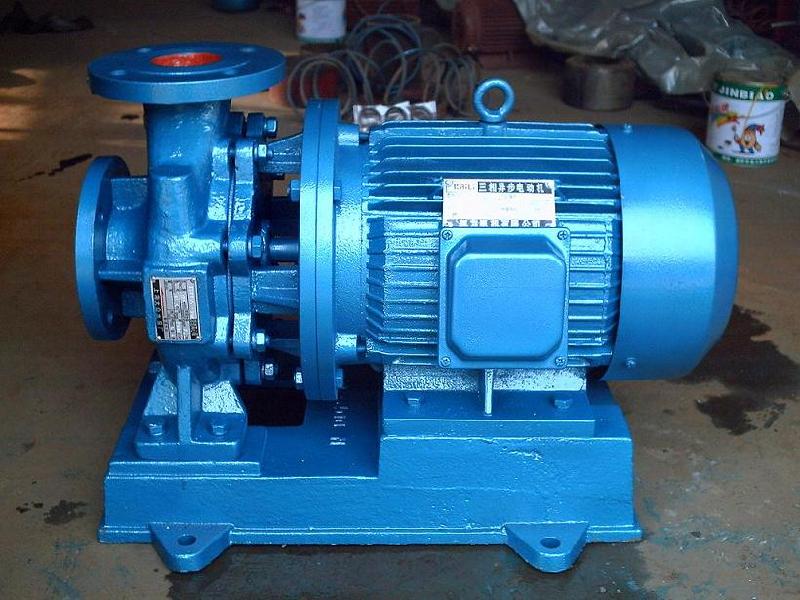

ISW、ISWR、IHW、ISWH、ISWD、ISWRD、ISWHD、ISWYD型臥式單級單吸管道離心泵。
運行平穩：泵軸的絕對同心度及葉輪優異的動靜平衡，保證平穩運行，絕無振動。
滴水不漏：不同材質的硬質合金密封，保證了不同介質輸送均無泄漏。
噪音低：兩個低噪音的軸承支撐下的水泵，運轉平穩，除電機微弱聲響，基本無噪音。
故障率低：結構簡單合理，關鍵部分采用國際一流品質配套，整機無故障工作時間大大提高。
維修方便：更換密封、軸承、簡易方便。
占地更?。撼隹诳上蜃?、向右、向上三個方向，便管道布置安裝，節省空間。
使用范圍:
1、ISW型臥式管道離心泵供輸送清水及物理化學性質類似于清水的其它液體之用，適用于工業和城市給排水、高層建筑增壓送水、園林噴灌、消防增壓、遠距離輸送、暖通制冷循環、浴室等冷暖水循環增壓及設備配套，使用溫度t≤80℃。
2、ISWR臥式熱水管道泵廣泛適用于：冶金、化工、紡織、造紙以及賓館飯店等鍋爐熱水增壓循環輸送及城市采暖系統，iswr型使用溫度t≤120℃。
3、ISWH臥式不銹鋼管道離心泵，供輸送不含固體顆粒，具有腐蝕性、粘度類似于水的液體，適用于石油、化工、冶金、電力、造紙、食品制藥和合成纖維等部門，使用溫度為-20℃～+120℃。
4、ISWB防爆臥式管道離心泵供輸送汽油、煤油、柴油等油類產品或易燃、易爆液體，被輸送介質溫度為-20～ +120℃。
工作條件:
1、吸入壓力≤1.0Mpa，或泵系統最高工作壓力≤1.6Mpa,即 泵 吸入口壓力 泵揚程≤ 1.6Mpa、泵靜壓試驗壓力為2.5Mpa,訂貨時請注明系統工作壓力。泵系統工作壓力大于 1.6Mpa時應在訂貨時另行提出。以便在制造時泵的過流部件和聯接部分采用鑄鋼材料。
2、 環境溫度<40℃，相對濕度<95%。
3、 所輸送介質中固體顆粒體積含量不超過單位體積的0.1%，粒度<0.2mm.
注：如使用介質為帶有細小顆粒，請在訂貨時說明，以便采用耐磨式機械密封。
性能參數:
|
ISW、ISWR、ISWH、ISWB型臥式管道離心泵性能參數（高轉速2900r/min）：
|
型號
|
流量
(m3/h)
|
揚程
(m)
|
電機功率
(kw)
|
轉速
(r/min)
|
效率
(%)
|
汽蝕余量
(m)
|
|
25-125
|
4
|
20
|
0.75
|
2900
|
36
|
2.3
|
|
25-125A
|
3.6
|
16
|
0.55
|
2900
|
35
|
2.3
|
|
25-160
|
4
|
32
|
1.5
|
2900
|
32
|
2.3
|
|
25-160A
|
3.7
|
28
|
1.1
|
2900
|
31
|
2.3
|
|
32-100
|
4.5
|
12.5
|
0.55
|
2900
|
56
|
2.3
|
|
32-100(I)
|
6.3
|
12.5
|
1.1
|
2900
|
54
|
2.0
|
|
32-125
|
4.5
|
20
|
0.75
|
2900
|
45
|
2.3
|
|
32-125(I)
|
6.3
|
20
|
1.1
|
2900
|
43
|
2.3
|
|
32-125A
|
4.0
|
16
|
0.55
|
2900
|
43
|
2.3
|
|
32-160
|
4.5
|
32
|
1.1
|
2900
|
44
|
2.3
|
|
32-160A
|
4.5
|
25
|
1.1
|
2900
|
42
|
2.3
|
|
32-160(I)
|
6.3
|
32
|
2.2
|
2900
|
42
|
2.3
|
|
32-200
|
4.5
|
50
|
3
|
2900
|
45
|
2.3
|
|
32-200A
|
4
|
40
|
2.2
|
2900
|
40
|
2.3
|
|
32-200(I)
|
6.3
|
50
|
4
|
2900
|
33
|
2.0
|
|
40-100
|
6.3
|
12.5
|
0.55
|
2900
|
54
|
2.3
|
|
40-100A
|
5.6
|
10
|
0.37
|
2900
|
52
|
2.3
|
|
40-125
|
6.3
|
20
|
1.1
|
2900
|
46
|
2.3
|
|
40-125A
|
5.6
|
16
|
0.75
|
2900
|
45
|
2.3
|
|
40-160
|
6.3
|
32
|
2.2
|
2900
|
40
|
2.3
|
|
40-160A
|
5.9
|
28
|
1.5
|
2900
|
39
|
2.3
|
|
40-160B
|
5.2
|
24
|
1.1
|
2900
|
38
|
2.3
|
|
40-200
|
6.3
|
50
|
4
|
2900
|
33
|
2.3
|
|
40-200A
|
5.9
|
44
|
3
|
2900
|
31
|
2.3
|
|
40-200B
|
5.5
|
38
|
2.2
|
2900
|
29
|
2.3
|
|
40-250
|
6.3
|
80
|
7.5
|
2900
|
28
|
2.3
|
|
40-250A
|
5.9
|
70
|
5.5
|
2900
|
28
|
2.3
|
|
40-250B
|
5.5
|
60
|
4
|
2900
|
27
|
2.3
|
|
40-100(I)
|
12.5
|
12.5
|
1.1
|
2900
|
62
|
2.3
|
|
40-125(I)
|
12.5
|
20
|
1.5
|
2900
|
60
|
2.3
|
|
40-125(I)A
|
11.2
|
17.2
|
1.1
|
2900
|
58
|
2.3
|
|
40-160(I)
|
12.5
|
32
|
3
|
2900
|
52
|
2.3
|
|
40-160(I)A
|
11.7
|
28
|
2.2
|
2900
|
51
|
2.3
|
|
40-160(I)B
|
10.5
|
22.5
|
1.5
|
2900
|
50
|
2.3
|
|
40-200(I)
|
12.5
|
50
|
5.5
|
2900
|
46
|
2.3
|
|
40-200(I)A
|
11.7
|
40
|
4
|
2900
|
45
|
2.3
|
|
40-200(I)B
|
10.5
|
35
|
3
|
2900
|
44
|
2.3
|
|
40-250(I)
|
12.5
|
80
|
11
|
2900
|
38
|
2.3
|
|
40-250(I)A
|
11.7
|
70
|
7.5
|
2900
|
38
|
2.3
|
|
40-250(I)B
|
10.8
|
60
|
7.5
|
2900
|
37
|
2.3
|
|
50-100
|
12.5
|
12.5
|
1.1
|
2900
|
62
|
2.3
|
|
50-125
|
12.5
|
20
|
1.5
|
2900
|
58
|
2.3
|
|
50-125A
|
11.2
|
17.2
|
1.1
|
2900
|
57
|
2.3
|
|
50-160
|
12.5
|
32
|
3
|
2900
|
52
|
2.3
|
|
50-160A
|
11.7
|
28
|
2.2
|
2900
|
51
|
2.3
|
|
50-160B
|
10.5
|
22.5
|
1.5
|
2900
|
50
|
2.3
|
|
50-200
|
12.5
|
50
|
5.5
|
2900
|
46
|
2.3
|
|
50-200A
|
11.7
|
44.5
|
4
|
2900
|
45
|
2.3
|
|
50-200B
|
10.5
|
35
|
3
|
2900
|
44
|
2.3
|
|
50-250
|
12.5
|
80
|
11
|
2900
|
38
|
2.3
|
|
50-250A |
11.7
|
70
|
7.5
|
2900
|
38
|
2.3
|
|
50-250B |
10.8
|
60
|
7.5
|
2900
|
37
|
2.3
|
|
50-100(I) |
25
|
12.5
|
1.5
|
2900
|
69
|
2.5
|
|
50-100(I)A |
22.4
|
10
|
1.1
|
2900
|
67
|
2.5
|
|
50-125(I) |
25
|
20
|
3
|
2900
|
68
|
2.5
|
|
50-125(I)A |
22.4
|
16
|
2.2
|
2900
|
66
|
2.5
|
|
50-160(I) |
25
|
32
|
4
|
2900
|
63
|
2.5
|
|
50-160(I)A |
23.4
|
28
|
4
|
2900
|
62
|
2.5
|
|
50-160(I)B |
21.6
|
24
|
3
|
2900
|
58
|
2.5
|
|
50-200(I) |
25
|
50
|
7.5
|
2900
|
58
|
2.5
|
|
50-200(I)A |
23.4
|
44
|
7.5
|
2900
|
57
|
2.5
|
|
50-200(I)B |
21.6
|
37
|
5.5
|
2900
|
55
|
2.5
|
|
50-250(I) |
25
|
80
|
15
|
2900
|
50
|
2.5
|
|
50-250(I)A |
23.4
|
70
|
11
|
2900
|
50
|
2.5
|
|
50-250(I)B |
21.6
|
60
|
11
|
2900
|
49
|
2.5
|
|
50-315(I) |
25
|
125
|
30
|
2900
|
40
|
2.5
|
|
50-315(I)A |
23.4
|
110
|
22
|
2900
|
40
|
2.5
|
|
50-315(I)B |
21.6
|
93
|
18.5
|
2900
|
39
|
2.5
|
|
65-100 |
25
|
12.5
|
1.5
|
2900
|
69
|
2.5
|
|
65-100A |
22.4
|
10
|
1.1
|
2900
|
67
|
2.5
|
|
65-125 |
25
|
20
|
3
|
2900
|
68
|
2.5
|
|
65-125A |
22.4
|
16
|
2.2
|
2900
|
66
|
2.5
|
|
65-160 |
25
|
32
|
4
|
2900
|
63
|
2.5
|
|
65-160A |
23.4
|
28
|
4
|
2900
|
62
|
2.5
|
|
65-160B |
21.6
|
24
|
3
|
2900
|
58
|
2.5
|
|
65-200 |
25
|
50
|
7.5
|
2900
|
58
|
2.5
|
|
65-200A |
23.4
|
44
|
7.5
|
2900
|
57
|
2.5
|
|
65-200B |
21.6
|
37
|
5.5
|
2900
|
55
|
2.5
|
|
65-250 |
25
|
80
|
15
|
2900
|
50
|
2.5
|
|
65-250A |
23.4
|
70
|
11
|
2900
|
50
|
2.5
|
|
65-250B |
21.6
|
60
|
11
|
2900
|
49
|
2.5
|
|
65-315 |
25
|
125
|
30
|
2900
|
40
|
2.5
|
|
65-315A |
23.4
|
110
|
22
|
2900
|
40
|
2.5
|
|
65-315B |
21.6
|
93
|
18.5
|
2900
|
39
|
2.5
|
|
65-100(I) |
50
|
12.5
|
3
|
2900
|
73
|
3.0
|
|
65-100(I)A |
44.8
|
10
|
2.2
|
2900
|
72
|
3.0
|
|
65-125(I) |
50
|
20
|
5.5
|
2900
|
72.5
|
3.0
|
|
65-125(I)A |
44.8
|
16
|
4
|
2900
|
71
|
3.0
|
|
65-160(I) |
50
|
32
|
7.5
|
2900
|
71
|
3.0
|
|
65-160(I)A |
46.8
|
28
|
7.5
|
2900
|
70
|
3.0
|
|
65-160(I)B |
43.2
|
24
|
5.5
|
2900
|
69
|
3.0
|
|
65-200(I) |
50
|
50
|
15
|
2900
|
67
|
3.0
|
|
65-200(I)A |
46.8
|
44
|
11
|
2900
|
66
|
3.0
|
|
65-200(I)B |
43
|
37
|
7.5
|
2900
|
65
|
3.0
|
|
65-250(I) |
50
|
80
|
22
|
2900
|
59
|
3.0
|
|
65-250(I)A |
46.8
|
70
|
18.5
|
2900
|
59
|
3.0
|
|
65-250(I)B |
43
|
60
|
15
|
2900
|
58
|
3.0
|
|
65-315(I) |
50
|
125
|
37
|
2900
|
54
|
3.0
|
|
65-315(I)A |
45.8
|
105
|
30
|
2900
|
54
|
3.0
|
|
65-315(I)B |
43
|
93
|
30
|
2900
|
53
|
3.0
|
|
80-100 |
50
|
12.5
|
3
|
2900
|
73
|
3.0
|
|
80-100A |
44.8
|
10
|
2.2
|
2900
|
72
|
3.0
|
|
80-125 |
50
|
20
|
5.5
|
2900
|
72.5
|
3.0
|
|
80-125A |
44.8
|
16
|
4
|
2900
|
71
|
3.0
|
|
80-160 |
50
|
32
|
7.5
|
2900
|
71
|
3.0
|
|
80-160A |
46.8
|
28
|
7.5
|
2900
|
70
|
3.0
|
|
80-160B |
43.2
|
24
|
5.5
|
2900
|
69
|
3.0
|
|
80-200 |
50
|
50
|
15
|
2900
|
67
|
3.0
|
|
80-200A |
46.8
|
44
|
11
|
2900
|
66
|
3.0
|
|
80-200B |
43
|
37
|
7.5
|
2900
|
65
|
3.0
|
|
80-250 |
50
|
80
|
22
|
2900
|
59
|
3.0
|
|
80-250A |
46.8
|
70
|
18.5
|
2900
|
59
|
3.0
|
|
80-250B |
43
|
60
|
15
|
2900
|
58
|
3.0
|
|
80-315 |
50
|
125
|
37
|
2900
|
54
|
3.0
|
|
80-315A |
45.8
|
105
|
30
|
2900
|
54
|
3.0
|
|
80-315B |
43
|
93
|
30
|
2900
|
53
|
3.0
|
|
80-315C |
41
|
85
|
22
|
2900
|
51
|
3.0
|
|
80-350 |
50
|
150
|
55
|
2900
|
66
|
3.0
|
|
80-350A |
44
|
142
|
45
|
2900
|
65
|
3.0
|
|
80-350B |
40
|
135
|
37
|
2900
|
63
|
3.0
|
|
80-100(I) |
100
|
12.5
|
5.5
|
2900
|
76
|
4.5
|
|
80-100(I)A |
89
|
10
|
4
|
2900
|
74
|
4.5
|
|
80-125(I) |
100
|
20
|
11
|
2900
|
76
|
4.5
|
|
80-125(I)A |
89
|
16
|
7.5
|
2900
|
74
|
4.5
|
|
80-160(I) |
100
|
32
|
15
|
2900
|
76
|
4.5
|
|
80-160(I)A |
93.5
|
28
|
11
|
2900
|
74
|
4.5
|
|
80-160(I)B |
86.4
|
24
|
11
|
2900
|
72
|
4.5
|
|
80-200(I) |
100
|
50
|
22
|
2900
|
74
|
4.0
|
|
80-200(I)A |
93.5
|
44
|
18.5
|
2900
|
73
|
4.0
|
|
80-200(I)B |
86.4
|
37
|
15
|
2900
|
71
|
4.0
|
|
80-250(I) |
100
|
80
|
37
|
2900
|
69
|
4.0
|
|
80-250(I)A |
93.5
|
70
|
30
|
2900
|
68
|
4.0
|
|
80-250(I)B |
86.4
|
60
|
30
|
2900
|
66
|
4.0
|
|
80-315(I) |
100
|
125
|
75
|
2900
|
66
|
4.0
|
|
80-315(I)A |
93.5
|
110
|
55
|
2900
|
66
|
4.0
|
|
80-315(I)B |
86.4
|
93
|
45
|
2900
|
65
|
4.0
|
|
80-315(I)C |
82
|
85
|
37
|
2900
|
63
|
4.0
|
|
100-100 |
100
|
12.5
|
5.5
|
2900
|
76
|
4.5
|
|
100-100A |
89
|
10
|
4
|
2900
|
74
|
4.5
|
|
100-125 |
100
|
20
|
11
|
2900
|
76
|
4.5
|
|
100-125A |
89
|
16
|
7.5
|
2900
|
74
|
4.5
|
|
100-160 |
100
|
32
|
15
|
2900
|
76
|
4.5
|
|
100-160A |
93.5
|
28
|
11
|
2900
|
74
|
4.5
|
|
100-160B |
86.4
|
24
|
11
|
2900
|
72
|
4.5
|
|
100-200 |
100
|
50
|
22
|
2900
|
74
|
4.0
|
|
100-200A |
93.5
|
44
|
18.5
|
2900
|
73
|
4.0
|
|
100-200B |
86.4
|
37
|
15
|
2900
|
71
|
4.0
|
|
100-250 |
100
|
80
|
37
|
2900
|
69
|
4.0
|
|
100-250A |
93.5
|
70
|
30
|
2900
|
68
|
4.0
|
|
100-250B |
86.4
|
60
|
30
|
2900
|
66
|
4.0
|
|
100-315 |
100
|
125
|
75
|
2900
|
66
|
4.0
|
|
100-315A |
93.5
|
110
|
55
|
2900
|
66
|
4.0
|
|
100-315B |
86.4
|
93
|
45
|
2900
|
65
|
4.0
|
|
100-100(I) |
160
|
12.5
|
11
|
2900
|
73
|
4.5
|
|
100-125(I) |
160
|
20
|
15
|
2900
|
74
|
4.5
|
|
100-125(I)A
|
143
|
16
|
11
|
2900
|
72
|
4.5
|
|
100-160(I)
|
160
|
32
|
22
|
2900
|
79
|
5.6
|
|
100-160(I)A
|
150
|
28
|
18.5
|
2900
|
76
|
5.0
|
|
100-200(I)
|
160
|
50
|
37
|
2900
|
79
|
5.2
|
|
100-200(I)A
|
150
|
45
|
30
|
2900
|
74
|
4.5
|
|
100-200(I)B
|
138
|
40
|
22
|
2900
|
72
|
4.5
|
|
100-250(I)
|
160
|
80
|
55
|
2900
|
77
|
4.8
|
|
100-250(I)A
|
140
|
70
|
45
|
2900
|
72
|
4.5
|
|
100-250(I)B
|
100
|
65
|
37
|
2900
|
70
|
4.5
|
|
100-350
|
100
|
150
|
90
|
2900
|
57
|
4.0
|
|
100-350A
|
87
|
142
|
75
|
2900
|
75
|
4.0
|
|
100-350B
|
82
|
135
|
55
|
2900
|
75
|
4.0
|
|
125-100
|
160
|
12.5
|
11
|
2900
|
82
|
4.0
|
|
125-100A
|
143
|
10
|
7.5
|
2900
|
77
|
4.0
|
|
125-125
|
160
|
20
|
15
|
2900
|
80
|
4.0
|
|
125-125A
|
143
|
16
|
11
|
2900
|
77
|
4.0
|
|
125-160
|
200
|
32
|
30
|
2900
|
78
|
4.0
|
|
125-160A
|
187
|
28
|
22
|
2900
|
76
|
4.0
|
|
125-160B
|
180
|
24.5
|
18.5
|
2900
|
73
|
4.0
|
|
125-200
|
200
|
50
|
45
|
2900
|
77
|
5.5
|
|
125-200A
|
187
|
44
|
37
|
2900
|
76
|
5.5
|
|
125-200B
|
172
|
37
|
30
|
2900
|
75
|
5.5
|
|
125-250
|
200
|
80
|
75
|
2900
|
75
|
5.0
|
|
125-250A
|
187
|
70
|
55
|
2900
|
74
|
5.5
|
|
125-250B
|
172
|
60
|
45
|
2900
|
73
|
5.5
|
|
125-315
|
200
|
125
|
110
|
2900
|
70
|
5.0
|
|
125-315A
|
187
|
110
|
90
|
2900
|
70
|
5.0
|
|
125-315B
|
172
|
93
|
75
|
2900
|
69
|
5.0
|
|
125-315C
|
160
|
78
|
55
|
2900
|
67
|
5.0
|
|
150-125
|
160
|
20
|
11
|
2900
|
76
|
4.0
|
|
150-125A
|
150
|
16
|
7.5
|
2900
|
77
|
4.0
|
|
150-160
|
160
|
32
|
22
|
2900
|
75
|
4.0
|
|
150-160A
|
150
|
28
|
18.5
|
2900
|
76
|
4.0
|
|
150-160B
|
140
|
24
|
15
|
2900
|
73
|
4.0
|
|
150-200
|
160
|
50
|
37
|
2900
|
77
|
5.5
|
|
150-200A
|
150
|
44
|
30
|
2900
|
76
|
5.5
|
|
150-200B
|
140
|
38
|
22
|
2900
|
75
|
5.5
|
|
150-250
|
200
|
80
|
75
|
2900
|
75
|
5.0
|
|
150-250A
|
187
|
70
|
55
|
2900
|
74
|
5.5
|
|
150-250B
|
172
|
60
|
45
|
2900
|
73
|
5.5
|
|
150-315
|
200
|
125
|
110
|
2900
|
70
|
5.0
|
|
150-315A
|
187
|
110
|
90
|
2900
|
70
|
5.0
|
|
150-315B
|
172
|
93
|
75
|
2900
|
69
|
5.0
|
ISW、ISWR、ISWH、ISWB型臥式管道離心泵性能參數
（低轉速1450、970r/min）：
|
型號
|
流量
(m3/h)
|
揚程
(m)
|
電機功率
(kw)
|
轉速
(r/min)
|
|
40-125(I) |
6.3
|
5
|
0.55
|
1450
|
|
40-160(I) |
6.3
|
8
|
0.55
|
1450
|
|
40-160(I)A |
5.5
|
6
|
0.55
|
1450
|
|
40-200(I) |
6.3
|
12.5
|
0.75
|
1450
|
|
40-200(I)A |
5.8
|
11
|
0.55
|
1450
|
|
40-250(I) |
6.3
|
20
|
1.5
|
1450
|
|
40-250(I)A |
5.8
|
17
|
1.1
|
1450
|
|
50-125 |
6.3
|
5
|
0.55
|
1450
|
|
50-160 |
6.3
|
8
|
0.55
|
1450
|
|
50-160A |
5.5
|
6
|
0.55
|
1450
|
|
50-200 |
6.3
|
12.5
|
0.75
|
1450
|
|
50-200A |
5.8
|
11
|
0.55
|
1450
|
|
50-250 |
6.3
|
20
|
1.5
|
1450
|
|
50-250A |
5.8
|
17
|
1.1
|
1450
|
|
50-125(I) |
12.5
|
5
|
0.55
|
1450
|
|
50-160(I) |
12.5
|
8
|
0.75
|
1450
|
|
50-160(I)A |
11
|
6
|
0.55
|
1450
|
|
50-200(I) |
12.5
|
12.5
|
1.1
|
1450
|
|
50-200(I)A |
11.2
|
10
|
0.75
|
1450
|
|
50-250(I) |
12.5
|
20
|
2.2
|
1450
|
|
50-250(I)A |
11.7
|
17.5
|
1.5
|
1450
|
|
50-250(I)B |
10
|
13
|
1.1
|
1450
|
|
50-315(I) |
12.5
|
32
|
4
|
1450
|
|
50-315(I)A |
11.7
|
28
|
3
|
1450
|
|
50-315(I)B |
10
|
21
|
3
|
1450
|
|
65-125 |
12.5
|
5
|
0.55
|
1450
|
|
65-160 |
12.5
|
8
|
0.75
|
1450
|
|
65-160A |
11
|
6
|
0.55
|
1450
|
|
65-200 |
12.5
|
12.5
|
1.1
|
1450
|
|
65-200A |
11.2
|
10
|
0.75
|
1450
|
|
65-250 |
12.5
|
20
|
2.2
|
1450
|
|
65-250A |
11.7
|
17.5
|
1.5
|
1450
|
|
65-250B |
10
|
13
|
1.1
|
1450
|
|
65-315 |
12.5
|
32
|
4
|
1450
|
|
65-315A |
11.7
|
28
|
3
|
1450
|
|
65-315B |
10
|
21
|
3
|
1450
|
|
65-125(I) |
25
|
5
|
0.75
|
1450
|
|
65-160(I) |
25
|
8
|
1.5
|
1450
|
|
65-160(I)A |
22
|
6
|
1.1
|
1450
|
|
65-200(I) |
25
|
12.5
|
2.2
|
1450
|
|
65-200(I)A |
23.3
|
11
|
1.5
|
1450
|
|
65-250(I) |
25
|
20
|
3
|
1450
|
|
65-250(I)A |
22.2
|
15.8
|
2.2
|
1450
|
|
65-250(I)B |
20
|
12.8
|
1.54
|
1450
|
|
65-315(I) |
25
|
32
|
5.5
|
1450
|
|
65-315(I)A |
22.5
|
26
|
4
|
1450
|
|
65-315(I)B |
20
|
21
|
3
|
1450
|
|
80-125 |
25
|
5
|
0.75
|
1450
|
|
80-160 |
25
|
8
|
1.5
|
1450
|
|
80-160A |
22
|
6
|
1.1
|
1450
|
|
80-200 |
25
|
12.5
|
2.2
|
1450
|
|
80-200A |
23.3
|
11
|
1.5
|
1450
|
|
80-250 |
25
|
20
|
3
|
1450
|
|
80-250A
|
22.2
|
15.8
|
2.2
|
1450
|
|
80-250B
|
20
|
12.8
|
1.5
|
1450
|
|
80-315
|
25
|
32
|
5.5
|
1450
|
|
80-315A
|
22.5
|
26
|
4
|
1450
|
|
80-315B
|
20
|
21
|
3
|
1450
|
|
80-125(I)
|
50
|
5
|
1.5
|
1450
|
|
80-160(I)
|
50
|
8
|
2.2
|
1450
|
|
80-160(I)A
|
44.7
|
6
|
1.5
|
1450
|
|
80-160(I)B |
43.2
|
5.8
|
1.5
|
1450
|
|
80-200(I) |
50
|
12.5
|
4
|
1450
|
|
80-200(I)A |
44.7
|
10
|
3
|
1450
|
|
80-250(I) |
50
|
20
|
5.5
|
1450
|
|
80-250(I)A |
46
|
17
|
4
|
1450
|
|
80-250(I)B |
40.5
|
13
|
3
|
1450
|
|
80-315(I) |
50
|
32
|
11
|
1450
|
|
80-315(I)A |
46
|
27.9
|
7.5
|
1450
|
|
80-315(I)B |
40.5
|
21
|
5.5
|
1450
|
|
100-125 |
50
|
5
|
1.5
|
1450
|
|
100-160 |
50
|
8
|
2.2
|
1450
|
|
100-160A |
46
|
6
|
1.5
|
1450
|
|
100-200 |
50
|
12.5
|
4
|
1450
|
|
100-200A |
44.7
|
10
|
3
|
1450
|
|
100-250 |
50
|
20
|
5.5
|
1450
|
|
100-250A |
46
|
17
|
4
|
1450
|
|
100-250B |
40.5
|
13
|
3
|
1450
|
|
100-315 |
50
|
32
|
11
|
1450
|
|
100-315A |
46
|
27.9
|
7.5
|
1450
|
|
100-315B |
40.5
|
21
|
5.5
|
1450
|
|
100-125(I) |
80
|
5
|
2.2
|
1450
|
|
100-160(I) |
80
|
8
|
3
|
1450
|
|
100-160(I)A |
72
|
6.5
|
2.2
|
1450
|
|
100-200(I) |
80
|
12.5
|
5.5
|
1450
|
|
100-200(I)A |
72
|
10
|
4
|
1450
|
|
100-250(I) |
80
|
20
|
11
|
1450
|
|
100-250(I)A |
75
|
17.5
|
7.5
|
1450
|
|
100-250(I)B |
69
|
15
|
5.5
|
1450
|
|
100-315(I) |
80
|
32
|
15
|
1450
|
|
100-315(I)A |
75
|
27.5
|
11
|
1450
|
|
100-315(I)B |
70
|
24
|
11
|
1450
|
|
100-400(I) |
80
|
50
|
22
|
1450
|
|
100-400(I)A |
75
|
44
|
18.5
|
1450
|
|
100-400(I)B |
70
|
38
|
15
|
1450
|
|
125-125 |
100
|
5
|
2.2
|
1450
|
|
125-160 |
100
|
8
|
4
|
1450
|
|
125-160A |
87
|
6
|
4
|
1450
|
|
125-200 |
100
|
12.5
|
7.5
|
1450
|
|
125-200A |
89
|
10
|
5.5
|
1450
|
|
125-250 |
100
|
220
|
11
|
1450
|
|
125-250A |
93.5
|
17.5
|
7.5
|
1450
|
|
125-250B |
87
|
15
|
7.5
|
1450
|
|
125-315 |
100
|
32
|
15
|
1450
|
|
125-315A |
91
|
27
|
11
|
1450
|
|
125-315B |
87
|
24
|
11
|
1450
|
|
125-400 |
100
|
50
|
30
|
1450
|
|
125-400A |
94
|
44
|
22
|
1450
|
|
125-400B |
87
|
37.5
|
18.5
|
1450
|
|
125-200(I) |
160
|
12.5
|
11
|
1450
|
|
125-200(I)A |
143
|
10
|
7.5
|
1450
|
|
125-250(I) |
160
|
20
|
15
|
1450
|
|
125-250(I)A |
147
|
17
|
11
|
1450
|
|
125-250(I)B |
134
|
14
|
7.5
|
1450
|
|
125-315(I) |
160
|
32
|
22
|
1450
|
|
125-315(I)A |
150
|
28
|
18.5
|
1450
|
|
125-315(I)B |
138
|
24
|
15
|
1450
|
|
125-400(I) |
160
|
50
|
37
|
1450
|
|
125-400(I)A |
150
|
44
|
30
|
1450
|
|
125-400(I)B |
138
|
38
|
30
|
1450
|
|
150-200 |
160
|
12.5
|
11
|
1450
|
|
150-200A |
143
|
10
|
7.5
|
1450
|
|
150-250 |
160
|
20
|
15
|
1450
|
|
150-250A |
147
|
17
|
11
|
1450
|
|
150-250B |
134
|
14
|
7.5
|
1450
|
|
150-315 |
160
|
32
|
22
|
1450
|
|
150-315A |
150
|
28
|
18.5
|
1450
|
|
150-315B |
138
|
24
|
15
|
1450
|
|
150-400 |
160
|
50
|
37
|
1450
|
|
150-400A |
150
|
44
|
30
|
1450
|
|
150-400B |
138
|
38
|
30
|
1450
|
|
150-200(I) |
200
|
12.5
|
15
|
1450
|
|
150-200(I)A |
179
|
10
|
11
|
1450
|
|
150-250(I) |
200
|
20
|
18.5
|
1450
|
|
150-250(I)A |
187
|
17.5
|
15
|
1450
|
|
150-250(I)B |
173
|
14
|
11
|
1450
|
|
150-315(I) |
200
|
32
|
30
|
1450
|
|
150-315(I)A |
187
|
28
|
22
|
1450
|
|
150-315(I)B |
173
|
24
|
18.5
|
1450
|
|
150-400(I) |
200
|
50
|
45
|
1450
|
|
150-400(I)A |
187
|
44
|
37
|
1450
|
|
150-400(I)B |
173
|
37.5
|
30
|
1450
|
|
200-200 |
200
|
12.5
|
15
|
1450
|
|
200-200A |
179
|
10
|
11
|
1450
|
|
200-250 |
200
|
20
|
18.5
|
1450
|
|
200-250A |
187
|
17.5
|
15
|
1450
|
|
200-250B |
173
|
14
|
11
|
1450
|
|
200-315 |
200
|
32
|
30
|
1450
|
|
200-315A |
187
|
28
|
22
|
1450
|
|
200-315B |
173
|
24
|
18.5
|
1450
|
|
200-400 |
200
|
50
|
45
|
1450
|
|
200-400A |
187
|
44
|
37
|
1450
|
|
200-400B |
173
|
37.5
|
30
|
1450
|
|
200-200(I) |
400
|
12.5
|
22
|
1450
|
|
200-200(I)A |
358
|
10
|
18.5
|
1450
|
|
200-250(I) |
400
|
20
|
30
|
1450
|
|
200-250(I)A |
358
|
16
|
22
|
1450
|
|
200-250(I)B |
322
|
13
|
18.5
|
1450
|
|
200-315(I) |
400
|
32
|
55
|
1450
|
|
200-315(I)A |
374
|
28
|
45
|
1450
|
|
200-315(I)B |
346
|
24
|
37
|
1450
|
|
200-400(I) |
400
|
50
|
90
|
1450
|
|
200-400(I)A |
374
|
44
|
75
|
1450
|
|
200-400(I)B |
347
|
38
|
55
|
1450
|
|
200-400(I)C |
320
|
32
|
45
|
1450
|
|
250-250 |
550
|
20
|
45
|
1450
|
|
250-250A |
490
|
16
|
37
|
1450
|
|
250-315 |
550
|
32
|
75
|
1450
|
|
250-315A |
515
|
28
|
55
|
1450
|
|
250-315B |
476
|
24
|
45
|
1450
|
|
250-400 |
550
|
50
|
110
|
1450
|
|
250-400A |
515
|
44
|
90
|
1450
|
|
250-400B |
476
|
37.5
|
75
|
1450
|
|
300-400 |
720
|
50
|
132
|
1450
|
|
300-400A |
662
|
44
|
110
|
1450
|
|
300-400B |
609
|
38
|
90
|
1450
|
|
300-400C |
561
|
33
|
75
|
1450
|
|
300-460 |
720
|
65
|
200
|
1450
|
|
300-460A |
662
|
55
|
160
|
1450
|
|
300-460B |
609
|
45
|
110
|
1450
|
|
300-460C |
561
|
38
|
90
|
1450
|
|
300-510 |
720
|
80
|
250
|
1450
|
|
300-510A |
662
|
70.5
|
200
|
1450
|
|
300-510B |
609
|
62
|
160
|
1450
|
|
300-510C |
561
|
54.5
|
132
|
1450
|
|
300-235 |
720
|
18
|
55
|
970
|
|
300-235A |
657
|
15
|
45
|
970
|
|
300-300 |
720
|
28
|
75
|
970
|
|
300-300A |
666
|
24
|
75
|
970
|
|
300-300B |
623
|
21
|
55
|
970
|
|
300-380 |
720
|
44
|
132
|
970
|
|
300-380A |
666
|
38
|
110
|
970
|
|
300-380B |
623
|
33
|
90
|
970
|
|
350-250 |
800
|
20
|
75
|
970
|
|
350-250A |
715
|
16
|
55
|
970
|
|
350-315 |
800
|
32
|
90
|
970
|
|
350-315A |
748
|
28
|
75
|
970
|
|
350-315B |
692
|
24
|
75
|
970
|
|
350-400 |
800
|
50
|
160
|
970
|
|
350-400A |
750
|
44
|
132
|
970
|
|
350-400B |
697
|
38
|
110
|
970
|
|
400-400 |
1080
|
12.5
|
55
|
970
|
|
400-400A |
966
|
10
|
45
|
970
|
|
400-500 |
1080
|
20
|
90
|
970
|
|
400-500A |
966
|
17
|
75
|
970
|
|
400-500B |
935
|
15
|
55
|
970
|
|
400-625 |
1080
|
32
|
132
|
970
|
|
400-625A |
996
|
27
|
110
|
970
|
|
400-625B |
935
|
24
|
90
|
970
|
|
500-400 |
1200
|
12.5
|
75
|
970
|
|
500-400A |
1073
|
10
|
55
|
970
|
|
500-500 |
1200
|
20
|
110
|
970
|
|
500-500A |
1106
|
17
|
90
|
970
|
|
500-500B |
1040
|
15
|
75
|
970
|
|
500-625 |
1200
|
32
|
160
|
970
|
|
500-625A |
1106
|
27
|
132
|
970
|
|
500-625B |
1040
|
24
|
110
|
970
|
|
|
產品名稱：
